SPECIFICATION

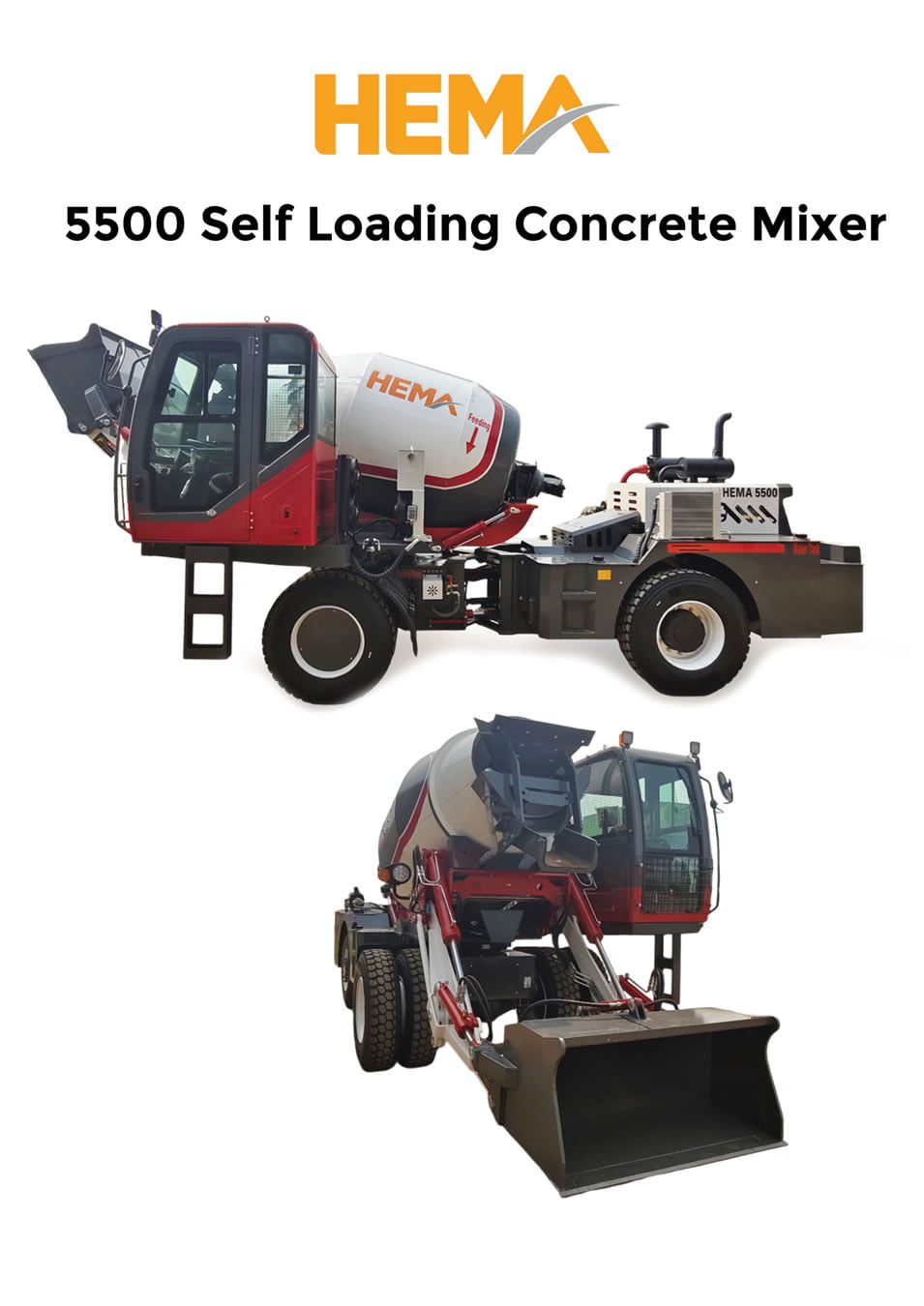

HEMA 5500 SELF LOADING CONCRETE
| SPECIFICATION | DETAILS |
|---|---|
| Model | 5.5 m² |
| Machine Size (mm) | 6760x2800x4100 (lifting arm) 7670x2800x3200 (drop arm) |
| Wheelbase (mm) | 3200 |
| Total Weight (kg) | 9500 |
| Engine | 4108/6105 (Yuchai) 4108 Supercharged/6105 Supercharged country II |
| Power (Kw) | 91/92 |
| Gearbox | 280/315 Separated type |
| Drive Axle | 2 |
| Tires | 16/70 R22.5 Double Tire |
| Bucket Capacity (m³) | 0.65 |
| Mixing Capacity (m³) | > 3.3 |
| Reduction Ratio | 01:28 |
| Rotating Speed (laps/minute) | > 15 laps/minute |
| Reducer | Made in China |
| Travel Speed (km/h) | 25 |
| Axle Number Traction Type | 4×4 |
